Technical Data
| Material: | untreated, pickled, galvanized |
|---|
| Thickness: | 2 - 20 mm |
|---|
| Width: | 420 - 2,100 mm |
|---|
| Length: | 2,000 - 22,000 mm |
|---|
| Length tolerance: | ± 0.5 mm for a reference length of 2,000 mm |
|---|
| ± 0.1 mm for each additionel 1,000 mm |
| Width tolerance: | 1.5 - 6 mm: ± 0.3 mm |
|---|
| 6 - 16 mm: ± 0.4 mm |

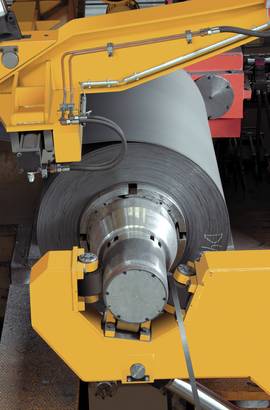

| Coil weight: | 8 - 35 t |
|---|
| Outside diameter: | 1,000 - 2,150 mm |
|---|
| Inside diameter: | 610 - 850 mm |
|---|
| Pack weight: | as desired |
|---|
| Edging: | 5 - 50 mm on each side |
|---|
| up to 16 mm thick |
| Flatness: | Plastification of the strip: 75 % for laser cutting equal to ⅓ of EN 10029 |
|---|
Residual unevenness up to a maximum of 3.0 mm for a plate length of 1,000 mm after laser cutting is guaranteed.
| Thickness | Max. tensile strength | Max. yield point |
| 2.0 - 10.0 mm | 1,000 N⁄mm² | 1,000 N⁄mm² |
| 10.1 - 12.0 mm | 850 N⁄mm² | 800 N⁄mm² |
| 12.1 - 20.0 mm | 850 N⁄mm² | 355 N⁄mm² |
